PV Waterproof DC Energy Storage MCCB

PV Waterproof DC Energy Storage MCCB

• SHXC-125PV/250PV

• Rated current :16, 20, 25, 32, 40, 50, 63, 80, 100, 125, 63, 80, 100, 125, 160, 200, 225, 250

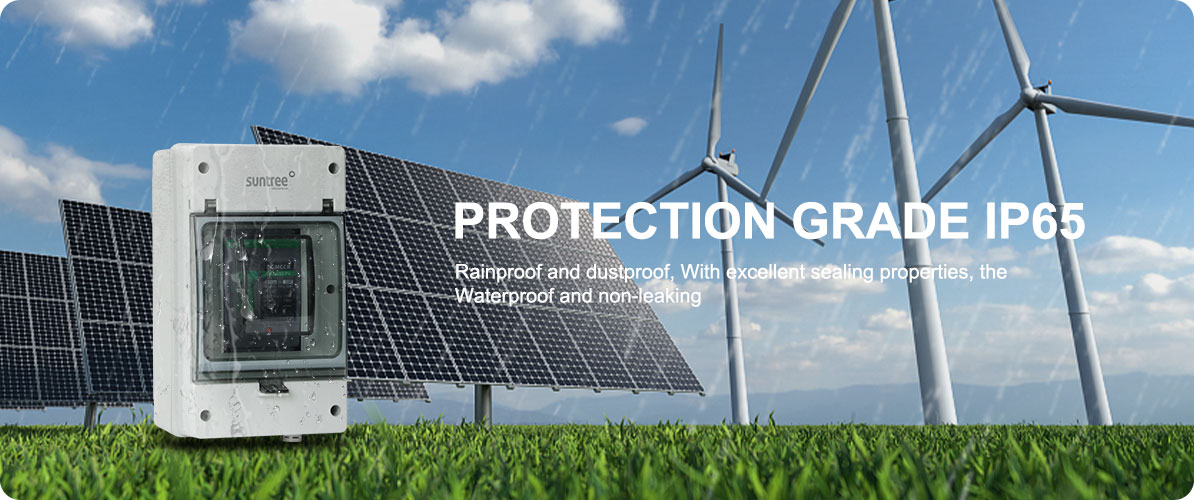

• IP65 design, waterproof, anti dust and anti ultraviolet.

• The box body  is made of PVC plastic material.

ELECTRICAL TECHNICAL REFERENCE

MAIN PARAMETERS
Model SHXC-125PV SHXC-250PV
Number of disconnector stages 2P
Rated current In 16, 20, 25, 32, 40, 50, 63, 80, 100, 125 63, 80, 100, 125, 160, 200, 225, 250
Rated voltage Ue 500VDC 500VDC
Rated insulation withstand voltage Ui DC1500V
Rated segmentation capacity Ics 20KA 20KA
Limit segmentation capacity Icu 15KA 15KA
Flying arc distance 50mm
Maximum instantaneous discharge current In=20KA/40KA
Short circuit instantaneous decoupling action current value 10In
Optional accessories Shunt release, undervoltage release, auxiliary, alarm
Decoupling type Single magnetic type
Service life (times) 10000
Wiring method Top in and bottom out
Waterproof box wiring hole diameter PG19/M24
Protection grade IP65
Working temperature -25℃~55℃
Installation height <2000m
Case material PVC
UV protection Yes
Dimension 276×154×145 276×154×145
