SMART EV CHARGER OCPP1.6J

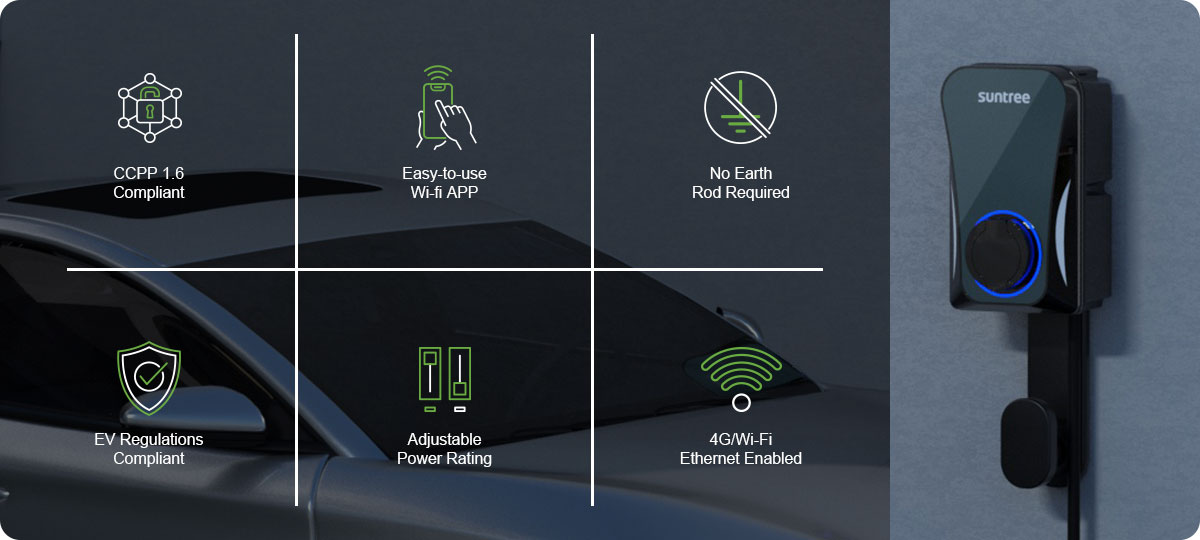

SWJ7/SWJ6 SMART EV CHARGER OCPP1.6J

• Universal charging socket or Type 2 tethered cable

• Power rating – 7.4kW/11kW/22kW

• Type A+6mA DC (Equal to Type B)

• Adjustable power rating – 10A,13A,16A&32A

• OCPP1.6(support upgrade to 0CPP2.0 } Optional

• CE and UKCA certified

• Free Tuya Smart APP for home use

• Scheduled / off-peak charging

• Solar compatible (single phase models only)

• PEN fault and residual current protection (AC 30mA Type A, DC 6mA)

• Dynamic load balancing (CT clamp(s) & cable(s) included)

• OCPP 1.6 compliant

• Built-in LED charging status indicator

• UK Smart Charge Point Regulations Compliant including tamper security

• Wi-Fi / Ethernet connectivity

• IP54 & IK08 rated

• Corrosion and fire resistant

• CE and UKCA certified

• Easy to install and maintain

• Wall or post mounting options

• OZEV grant fundable

DIMENSIONS

ELECTRICAL TECHNICAL REFERENCE

Item SWJ7E-7/SWJ6E-7 SWJ7E-11/SWJ6E-11 SWJ7E-22/SWJ6E-22
Power Supply 1P+N+PE 3P+N+PE 3P+N+PE
Rated Voltage 220-240V AC 380-450V AC 380-450V AC
Rated Current Max 32A (6-32A adjustable)
Frequency 50/60Hz 50/60Hz 50/60Hz
Output Voltage 220-240V AC 380-450V AC 80-450V AC
Maximum Current 32A 16A 32A
Rated Power 7KW 11kw 22 kw
Charger socket or connector Type 2
Cable Length 5/7/10 M Optional
Cover Material PC+ABS Allay
LED Indicator Red/Blue/Green
LCD Display LCD Display OptionalMIFARE ISOVIEC 14443-A
RFID Reader Support
Start Mode Plug-in & ChargeRFID Card /APP
Emergency Stop Optional
Wifi 4G Optional
3G/4G/5G Support
Ethernet Support
Bluetooth 0CPP1.6J (support upgrade to 0CPP2.0 ) Optional
Communication Protocol Type A+6mA DC (Equal to Type B) / Type A
Resldual Current Protection IP54
IP Degree IK08
lmpact protection
Multiple Protection Over/Under Current protection, Short Circuit Protection, Ground Protection, Surge Protection.
Over/Under Voltage Protection, Over/Under Temperature Protection, Earth Check.
Pen Fault Protection Optional
Certification Standard EN IEC 61851-1:2019:EN IEC 61851-21-2:2021:
ENIEC 61000-6-2.EN IEC 61000-6-4
Warranty 2 Years
Installation Wall-Mounting (Column Optional)
Work Temperature -30℃-50℃
Storage Temperature -40℃~70℃
Work Humidity 5% -95%RH
Work Altitude <2000M
Weight 2.1kgs/4kgs 2.2kgs/4kgs 2.2kgs/5kgs
Dynamic Loading Balance(DLB) CT DLB Optional
Standby Power <10W
