What is a Surge Protective Device (SPD)?
A Surge Protective Device (SPD) is an essential electrical component designed to protect electrical equipment from damage caused by sudden voltage spikes, known as surges. These surges can result from

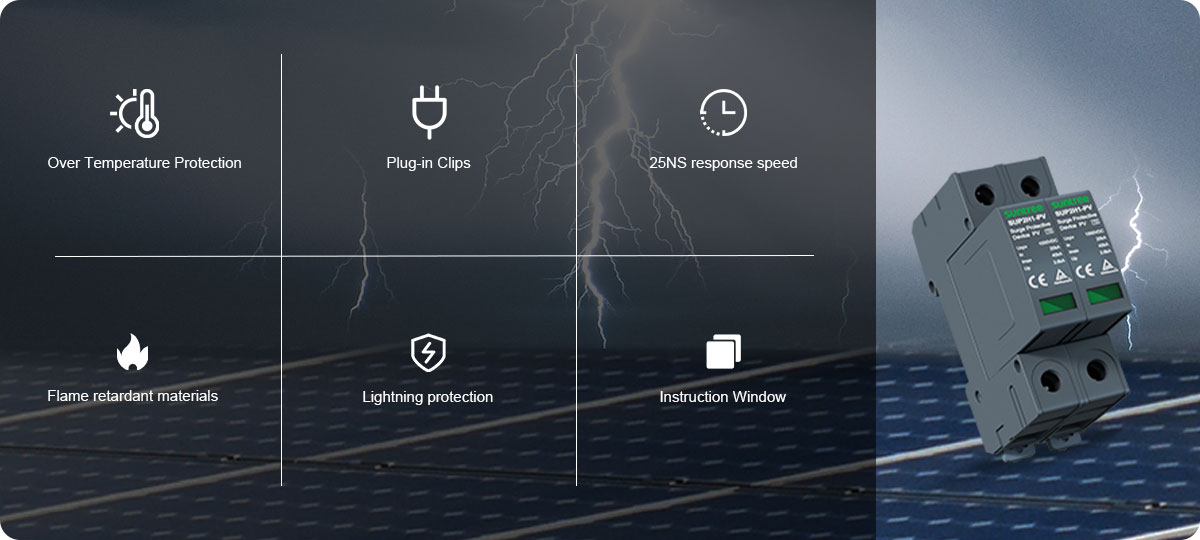

• Quickly dissipate heat and reduce the service temperature
• Plug-in clips, Easy module replacement
• Flash Barrier, Prevent arc propagation in current impact
• Use a suitable electrical insulator to keep a 10mm min.safety distance from
the PV-SPD and other grounfed parts in the housing
• The green and red visual indicator flags show the module protective status
(green = good, red = replace)
• Features visual indication and optional remote contact signaling
(floating changeover contact)
• Feature a combined disconnection
• Short-circuiting (shunting) device with safe electrical isolation to Prevent fire damage due to DC arcs.

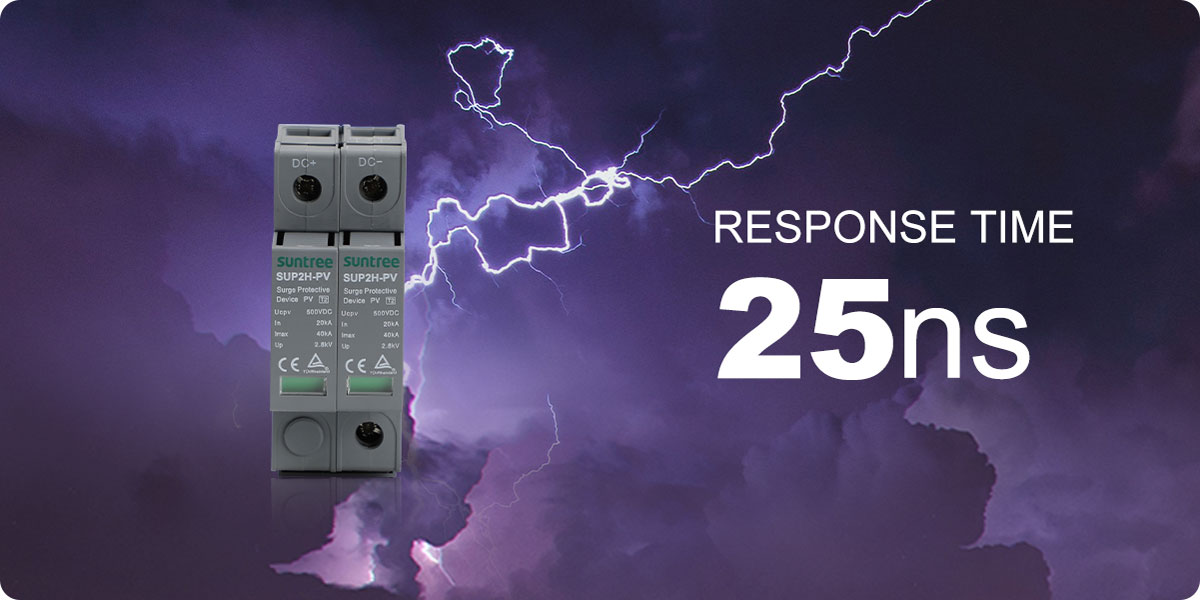

| Product Model | SUP2H-PV | ||
| Max. cntinuous operating volage (Ue) | 500VDC | 600VDC | 800VDC |
| Max. discharge curent (max) (8/20u s) | 20、40KA | ||
| Protection level (In) Up | 2.8kV | 2.8kV | 3.0kV |
| Service temperature | -40℃~+70℃ | ||
| Relative humidity | ≤95% (25℃) | ||
| Installation mode | 35mm standard guide rail | ||
| Window indication | Normakt green; Failure: Red | ||
| Ingress protection | IP20 | ||
| Numbers of poles | 2P | ||
| Leakage 0.75u ImA (uA) | ≤20 | ||
