DC Surge Protectors Type 1+Type 2 600V

DC Surge Protectors Type 1+Type 2 600V

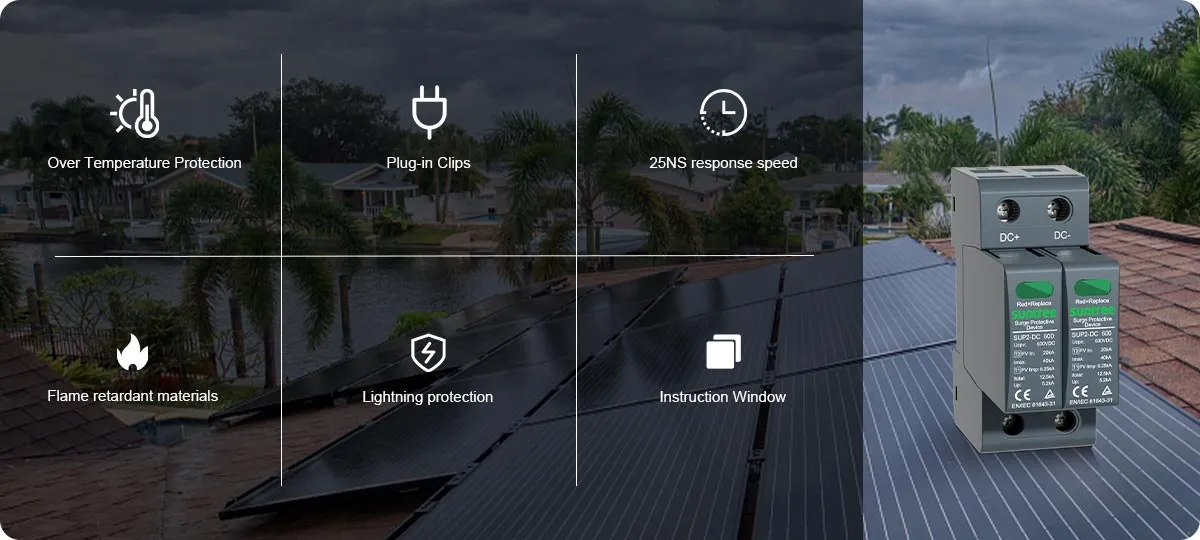

• Quickly dissipate heat and reduce the service temperature

• Plug-in clips, Easy module replacement

• Flash Barrier, Prevent arc propagation in current impact

• Use a suitable electrical insulator to keep a 10mm min.safety distance from
   the PV-SPD and other grounfed parts in the housing

• The green and red visual indicator flags show the module protective status
   (green = good, red = replace)

• Features visual indication and optional remote contact signaling
   (floating changeover contact)

•  Feature a combined disconnection

• Short-circuiting (shunting) device with safe electrical isolation to Prevent fire damage due to DC arcs.

ELECTRICAL TECHNICAL REFERENCE

IEC ELECTRICAL
Maximum Continuous Operating DC Voltage (DC+)- PE, (DC-)- PE, (DC+)- (DC-) UCPV 600V
Nominal Discharge Current (8/20us) In 40A
lmpulse Discharge Curent (10/350 us) Iimp 12.5kA
Total Discharge Current (10/350ys) ITotal 6.25kA
Total Discharge Current (8/20 us) ITotal 20kA
Maximum Discharge Current (8/20 1s) Imax 40kA
Voltage Protection Level (DC+)- PE, (DC-)- PE, (DC+)- (DC-) Up ≤2200V

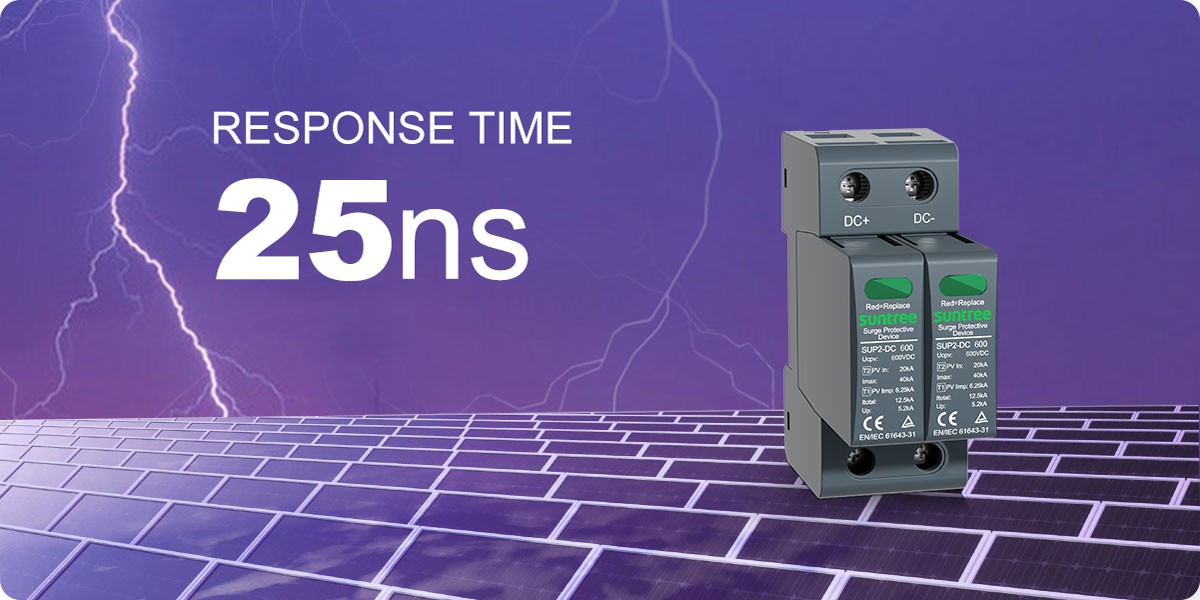

Response Time TA <25ns
ShortCircuit Current Rating ISCPV 2000A
Number of Ports   1
MECHANICAL & ENVIRONMENTAL
Operating Temperature Range Ta -40°F to +158 °F [-40℃ to +70℃]
Permissible Operating Humidity RH RH 5%...95%
Atmospheric pressure and altitude   80k Pa ... 106k Pa /-500 m... 2000 m
Terminal Screw Torque Mmax Imax 39.9 lbf-in [4.5 Nm]
Conductor Cross Section (max)   2 AWG (Solid, Stranded) / 4 AWG (Flexible)
35mm² (Solid, Stranded) / 25mm² (Flexible)
Mounting   35 mm DIN Rail, EN 60715
Degree of Protection   IP20 (built-in)

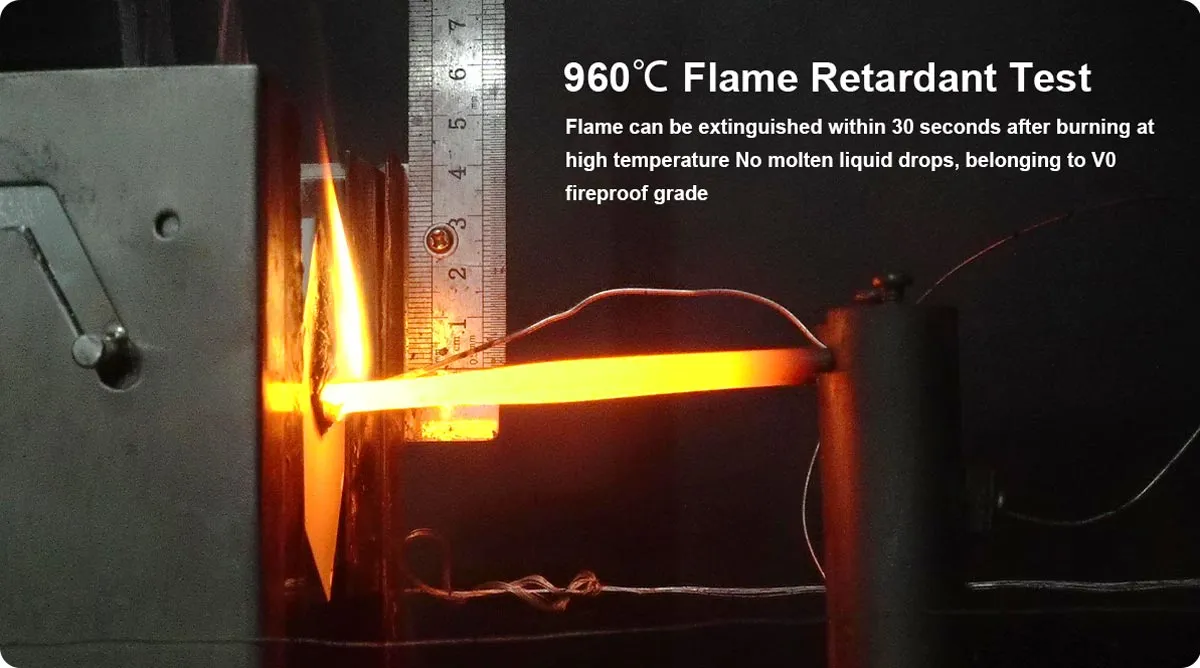

Housing Material   Thermoplastic: Extinguishing Degree UL 94 V-0
Thermal Protection   Yes
Operating State / Fault Indication   Green ok / Red defect
Remote Contacts (RC)   Option
RC Switching Capacity   AC: 250V / 0.5 A; DC: 250V/0.1 A; 125V / 0.2 A; 75V / 0.5A
RC Conductor Cross Section (max)   16 AWG (Solid) / 1.5mm²(Solid)
