SPG3 Smart Portable EV Charger 3.5/7KW

SPG3 Smart Portable EV Charger 3.5/7KW

• CE certified

• 1-Phase 3.5KW/7KW

• Type A

• With Indicator light / 2.8inches LCD display

• Plug-in and Charge / APP

• 2.8inches LED display

• Plug in and charge/APP can check

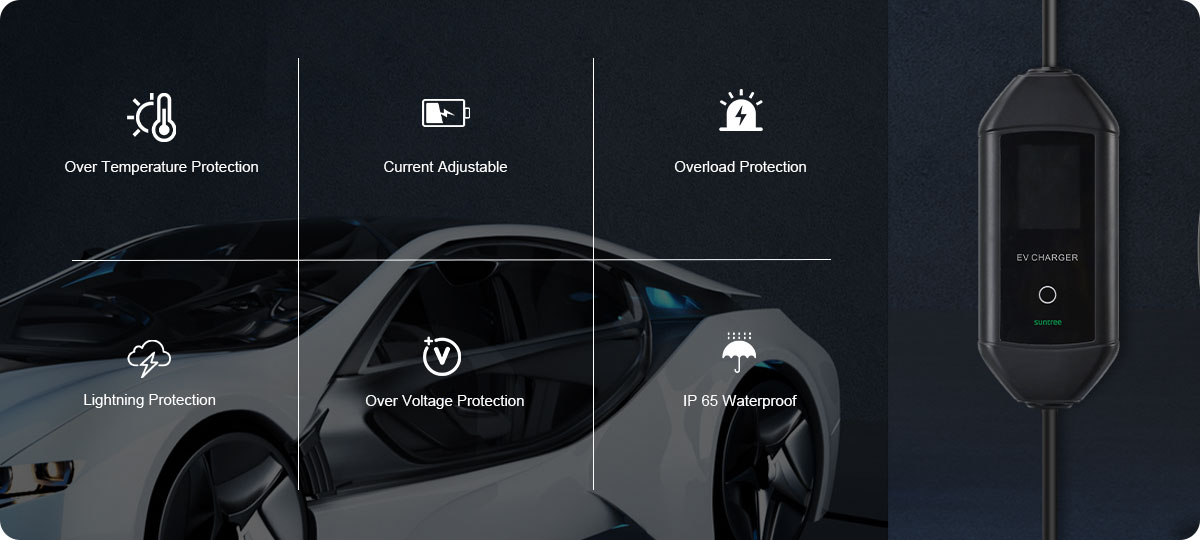

• Multiple protection

• Waterproof grade IP65

• Output power up to 7KW

• Will automatically stop when fully charged

• Shell by thermoplastic PC94-V0, abrasion protection

• The 2.8 inch display screen can display charging data

• The smart chip can automatically fix common charging errors to ensure the stable operation of the product

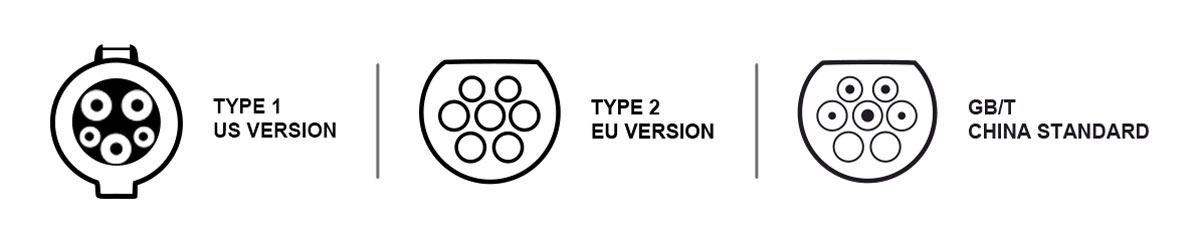

Expanded Compatibility With SAE J1772 (TYPE1) /
IEC62196-2 Type 2 /China standard GB/T Connector

ELECTRICAL TECHNICAL REFERENCE

DETAILED SPECIFICATIONS
Product model Portable EV Charger
STRUCTURE APPEARANCE
Equipment size 235mm*92mm*53mm(L*W*T)
lnstallation method Wall mount
Charging cable TPE(UL certified)
ELECTRICAL INDICATORS
lnput/Output Voltage AC100-240V
Frequency 50/60Hz
Rated power 3.5KW / 7Kw

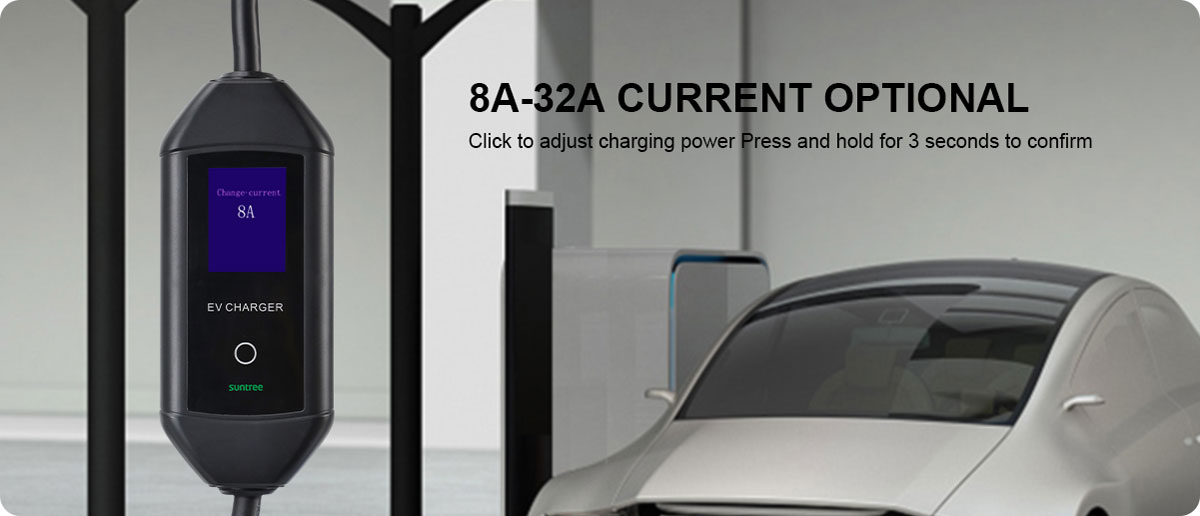

Operating current 0-16A(3.5KW)/0-32A(7KW)
FEATURE DESIGN
Start mode Plug & play
Display information 2.8 in LCD large screen, real-time dynamic display, exquisite high-end
USE ENVIRONMENT
Executive standard SAE J1772 (Type 1) / lEC62196 Type2 /CHINA STANDARD GB/T
Display function Display parameters Charge voltage, charge current, charge quantity, SOC, fault code
USE ENVIRONMENT
Ambient Humidity <95%RH
working humidity -30℃~50℃
Elevation <2000m
