Three hole nylon waterproof cable gland

Three hole nylon waterproof cable gland

• Materials: Nylon + EPDM rubber

• Waterproof: IP68

• Temperature:-40°~105°,Short-term 120°

• fire prevention:UL94V-2,Customizable V0

• performance:ROHS20, EU CE, IP68

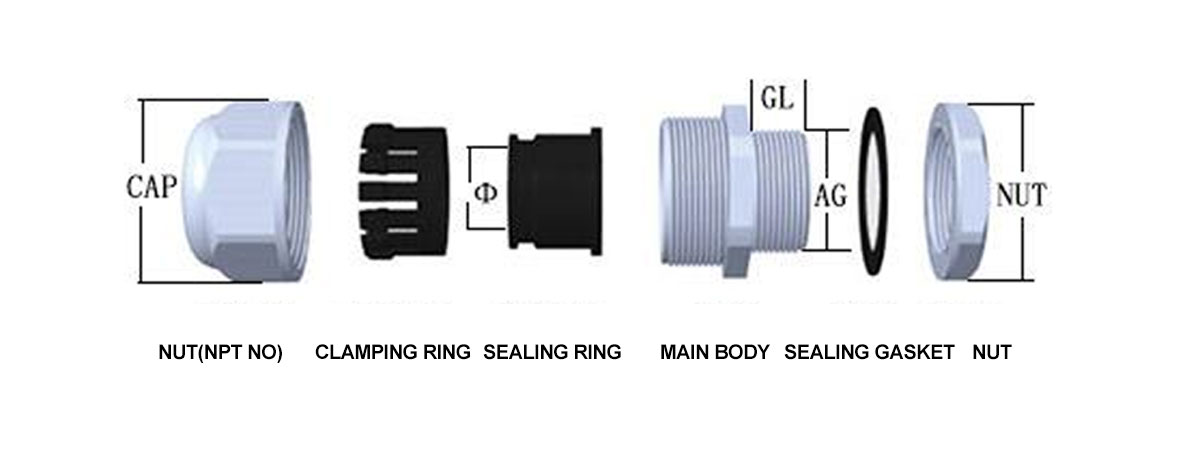

THREE HOLE CABLE GLAND SIZE

Product model Thread size Cable range Thread length Wrench Size
PN. Metric φ mm GL mm nut/cap mm
MG12A-H3-02 M12×1.5 1~2.6 8.5 18/19
MG16AS-H3-02 M16×1.5 1~2.6 10 22/19
MG16A-H3-04 M16×1.5 2~4 15 22/22
MG20A-H3-06 M20×1.5 3~6 15 27/27
MG20A-H3-05 M20×1.5 2~5 15 27/27
MG20A-H3-03 M20×1.5 1.5~3 15 27/27
MG20AS-H3-05 M20×1.5 2~5 10 27/24
MG22A-H3-06 M22×1.5 3~6 10 29/27
MG22A-H3-05 M22×1.5 2~5 10 29/27
MG22A-H3-03 M22×1.5 1.5~3 10 29/27
MG22A-H2-04 M25×1.5 5~8 15 33/33
MG25A-H3-07 M25×1.5 4~7 15 33/33
MG25A-H3-05 M25×1.5 2~5 15 33/33
MG32A-H3-10 M32×1.5 6~10 20 41/41
MG40A-H3-12 M40×1.5 9~12 22 50/50
MG50A-H3-12 M50×1.5 9~12 25 62/62
MG63A-H3-13 M63×1.5 9~13 8.5 75/78
PG7A-H3-02 PG7 1~2.6 8.5 17/19
PG9A-H3-02 PG9 1~2.6 10 22/19
PG11A-H3-04 PG11 2~4 10 22/22
PG13.5A-H3-05 PG13.5 2~5 11 27/24
PG16A-H3-06 PG16 3~6 11 30/27
PG16A-H3-05 PG16 2~5 11 30/27
PG16A-H3-03 PG16 1.5~3 11 30/27
PG21A-H3-08 PG21 5~8 12 36/33
PG21A-H3-07 PG21 4~7 12 36/33
PG21A-H3-05 PG21 2~5 12 3633
PG29A-H3-10 PG29 6~10 12 46/41
PG36A-H3-12 PG36 9~12 15 57/50
PG42A-H3-12 PG42 9~12 15.5 64/62
PG48A-H3-13 PG48 9~13 16 75/78
G1/4A-H3-02 G1/4 1~2.6 8.5 19/19
G3/8A-H3-04 G3/8 2~4 15 22/22
G1/2A-H3-05 G1/2 2~5 10 27/24
G1/2AL-H3-06 G1/2 3~6 15 30/27
G1/2AL-H3-05 G1/2 2~5 15 30/27
G3/4A-H3-08 G3/4 5~8 15 33/33
G3/4A-H3-07 G3/4 4~7 15 33/33
G3/4A-H3-05 G3/4 2~5 15 33/33
*G1A-H3-10 G1 6~10 15 42/41
G1-1/4A-H3-12 G1-1/4 9~12 16 51/50
G1-1/2A-H3-12 G1-1/2 9~12 22 62/62
G2A-H3-13 G2 9~13 25 75/75
