Comparison of AC and DC charging methods
The main types of charging for electric vehicles (EVs) are alternating current (AC) and direct current (DC), which differ in terms of efficiency, speed, and impact on the grid. The following is a deta
• 1-Phase 7kw/9kw/11kw/22kw 3-phase11/22kw
• Type A+6mA DC (Equal to Type B) / Type A

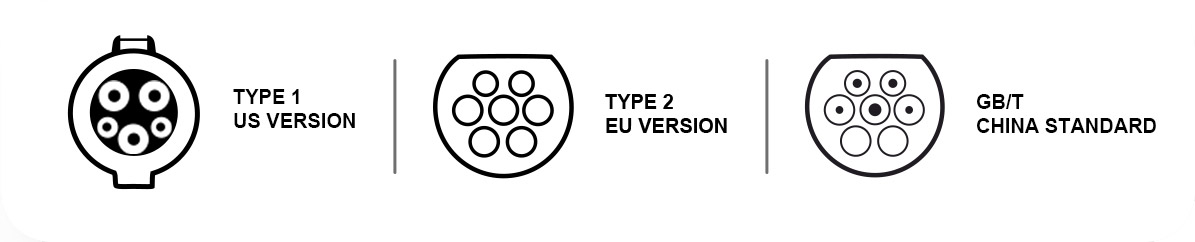

• Type 1/Type 2/GB/T charging cable
• Plug-in and Charge / RFID card WIFI & Bluetooth (APP) / 4G / Ethernet
• OCPP1.6 (support upgrade to 0CPP2.0) Optional
• CE and UKCA certified
• With swipe card start and remote stop/start.
• Appoint charging function, according to the user's demand for regular charging,
Will automatically end when fully charged.
• The history function allows you to check historical charging records and cost records.
• Equipped with display screen, real-time display SOC information,estimated full time.

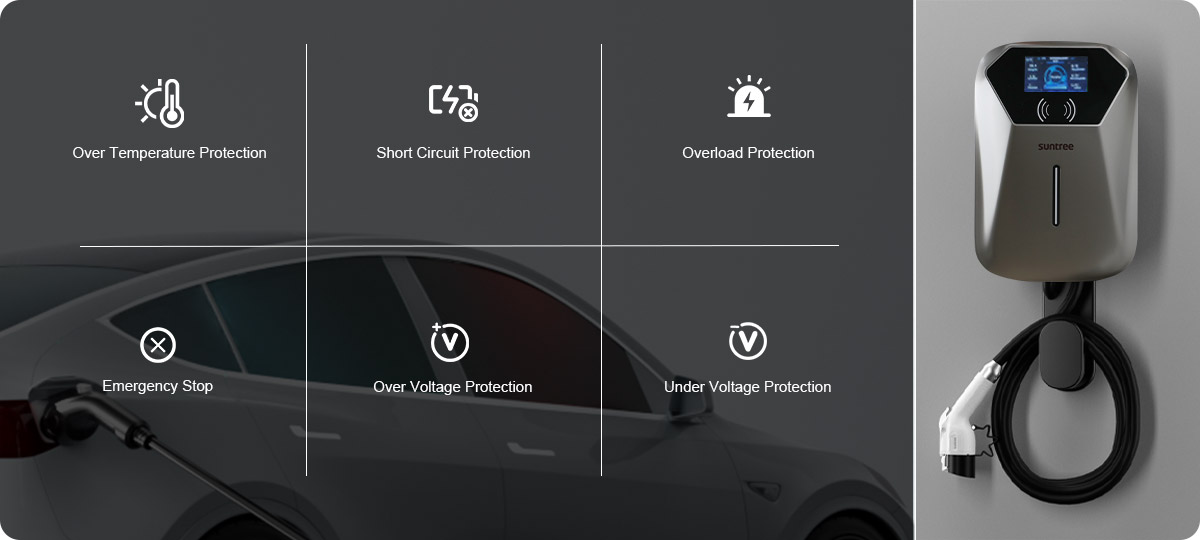

• With overload protection, over-voltage protection, under-voltage protection,
short-circuit protection, over-temperature protection, emergency stop and other functions.
• Easy to charge, Plug and play.
| Item | SWG5E-7/32 | SWG5E-11/16 | SWG5E-22/32 |
| Power Supply | 1P+N+PE | 3P+N+PE | 3P+N+PE |
| Rated Voltage | 220-240V AC | 380-415V AC | 380-450V AC |
| Rated Current | Max 32A(6-32A adjustable) | Max 16A(6-16A adjustable) | Max 32A(6-32A adjustable) |
| Frequency | 50/60Hz | 50/60Hz | 50/60Hz |
| Output Voltage | 220-240V AC | 380-415V AC | 380-415V AC |
| Maximum Current | 32A | 16A | 32A |
| Rated Power | 7 kw | 11kw | 22 kw |
| Charging Port | Type 2 Cable / GBT Type Cable | ||
| Cable Length | 5/7/10 M Optional | ||
| Cover Material | PC+Siloxane Alloy | ||
| LED indicator | RedBlue/Green | ||
| LCD Display | 4.3" LCD Display | ||
| RFID Reader | MIFARE ISO/IEC 14443-A | ||
| Start Mode | Plug-in & Charge/RFID Card /APP | ||
| Emergency Stop | Support | ||
| Wifi | Optional | ||
| 3G/4G/5G | 4G Optional | ||
| Ethernet | Optional | ||
| Bluetooth | Support | ||
| Communication Protocol | OCPP1.6J (support upgrade to OCPP2.0 ) Optional | ||
| Residual Current Protection | Type A+6mA DC (Equal to Type B) /Type A | ||
| IP Degree | IP55 | ||
| Impact protection | IK08 | ||
| Multiple Protection | OverUnder Current Protection , Short Circut Protection, Ground Proiection . Surge Protection. Over/Under Vollage Proteclion, OvenUnder Temperaiure Proleciion |
||
| Certification Standard | ENIEC 61851-1:2019:EN 62752:2016/A1:2020, EN IEC 61851-21-2.2021: EN IEC 61000-6-1:2019 ,EN IEC 61000-6-3-2021 |
||
| Warranty | 2 Years | ||

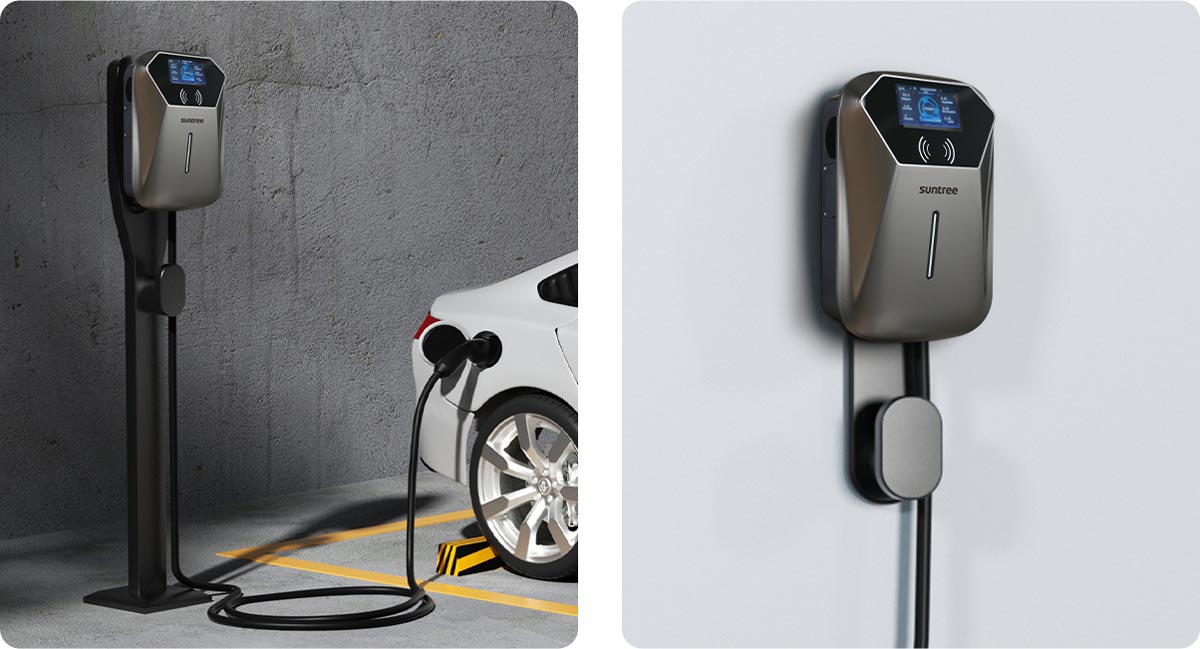

| Installation | Wall-Mounting (Column Optional) | ||
| Work Temperature | -30℃~50℃ | ||
| Storage Temperature | -40℃~70℃ | ||
| Work Humidity | 5% -95%RH | ||
| Work Altitude | <2000M | ||
| Weight | 3.9kgs | 4.2kgs | 5.2kgs |
| Optional Color | Silver/Dark Grey/Rose Golden | ||
| Dynamic Loading Balance(DLB) | CT DLB Optional | ||
| Standby Power | ≤3W | ≤6W | ≤6W |
