Single-phase Energy Storage Systems 3-8KW

Single-phase Energy Storage Systems 3-8KW

• Solar Panels.

• DC combiner box 2/2.

• INVERTER

• BATTERY

• Accessories

INSTALLATION STEPS

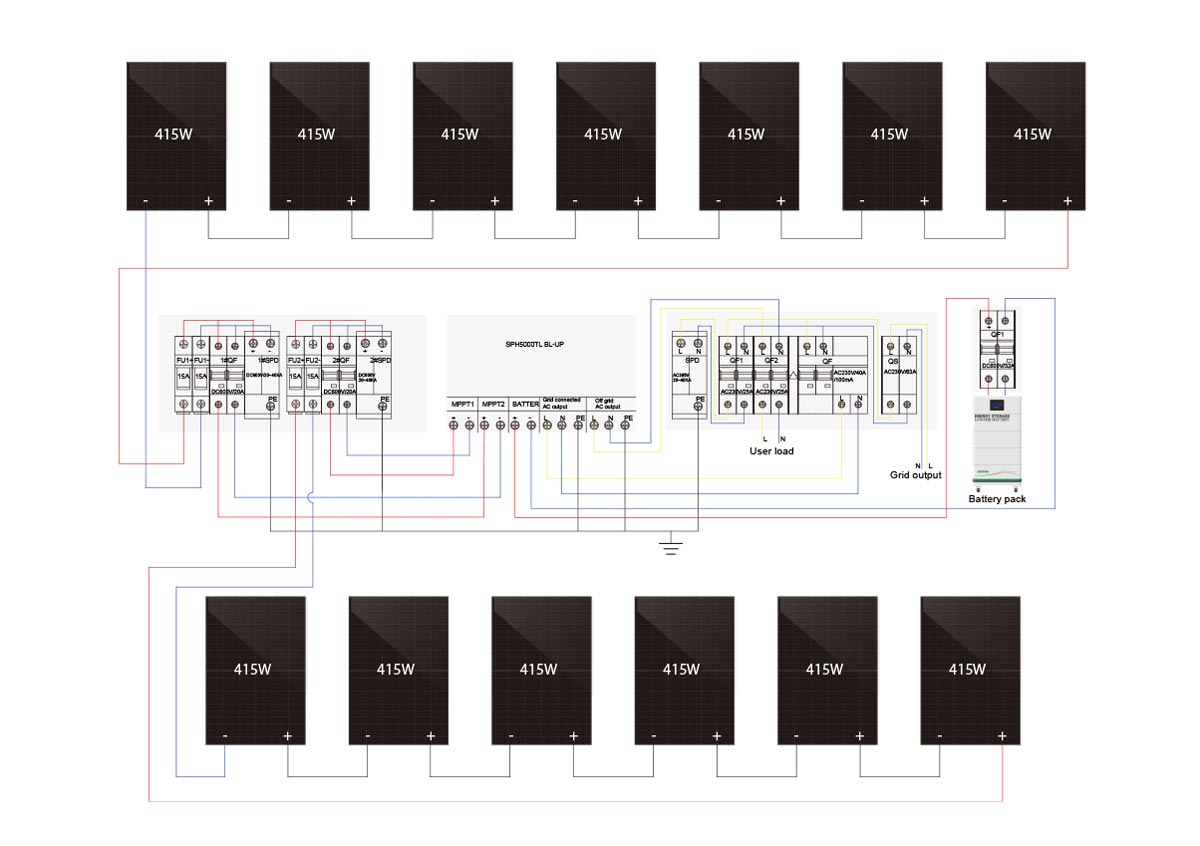

ELECTRICAL TECHNICAL REFERENCE

5KW Single-phase energy storage system
  MODEL QUANTITY UNIIT MPPT / INTERFACE
Component single crystal 415W 13 piece /
DC String box 2 in 2 out / (DC600V) 1 set /
Battery Storage Inverter SPH5000TL BL-UP(5KW) 1 set 2/1+1
AC distribution box / 1 set /
Battery protection box / 1 set /
Connecto MC4 2 set /
DC cable PV1-F4 100 meter /
Battery connection cable BVR- 10 meter /
AC cable YJV22- 100 meter /
Mounting Brackets / 1 set /
Battery pack 48V/5KWH 1 set /
Installation tool / 1 set /
