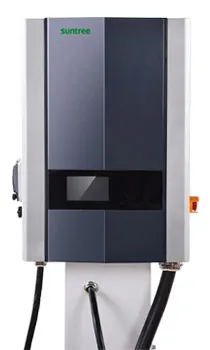

Wall Mounted / Column DC EV Charger

Wall Mounted / Column DC EV Charger

• 7KW / 15KW / 20KW / 30KW / 40KW

• GBT27930 / CHADEMO 2.0 / DIN 70121 /

• OCPP 1.6J / ISO 15118

• Online version:swipe card,VINcode

• OCPP can be configured for foreign versions

• Home version: It can be confgured with plug and charge, swipe  card and password,
   and charge by appointment.

• Online version: swipe card, VIN code, scan code of wechat and Alipay, mobile APP, mini program, etc.

• OCPP can be configured for foreign versions.

• Unique patented technology, which can meet the high protection level for
   outdoor use and make the product loose

• Moderate charging speed,0. 5~2C, ideal charging choice that takes into account charging speed and battery life.

• Can be wall hanging and column, flexible application situation.

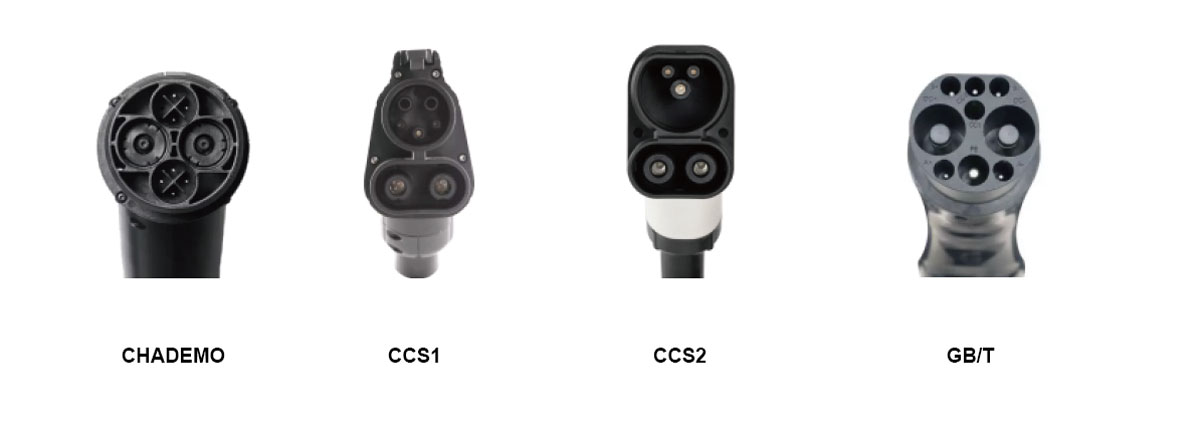

DC Charging Gun Applicable standard
GBT20234/EN62196/EN61851-1,JEVSG 105/CHADEMO

ELECTRICAL TECHNICAL REFERENCE

MAIN PARAMETER
Model XC97SADMSW-E XC415SADMSW-E XC420SADMSW-E XC430SADMSW-E XC440SADMSW-E
Input voltage 90-265V 260-475V
Input Connection L+N+PE 3P+N+PE
Input Current 32A 25A 32A 45A 64A
Frequency 50/60Hz
Power Factor >0.99@
Efficiency 95%
Output Voltage 200-750V (200-1000V optional)
Output Power 7KW 15KW 20KW 30KW 40KW
Output Current 20A 25A/37A 33A/60A 50A/100A 133A
TFT-LCD Touch Panel 4.3-inch display
Auxiliary source 12V (24V optional)
Dimension (mm) 545×380×170 645×454×170 721×457×232
Weight 20KG 30KG 35KG 45KG 64KG
Operating Temperature -20°C-50°C (Derating higher than 50°C)
Altitude 2000M
IP LEVEL Ip54
Humidity 5%-90%RH, no condensation
Input line length 0M(CUSTOMIZED ACCEPTABLE)
Gun cable Length 5M(CUSTOMIZED ACCEPTABLE)
Applicable standard GBT20234 / EN62196 / EN61851-1, JEVSG 105 / CHADEMO
Communication protocol GBT27930 / CHADEMO 2.0 / DIN 70121, OCPP 1.6 (JSON ), ISO 15118
